Mobile POS Device Compact is Really Convenient

AF60S is an innovative mobile payment terminal based on smartphones and other mobile devices, connecting to the Internet through wireless Bluetooth & USB interface. Combining an intelligent operating system APP, the device provides a one-stop payment solution for small enterprises. In order to maximize the payment system, minimize the device, and separate payment of one customer from the customer, an intelligent payment device - AF60S is designed to meet customer value-added and customized applications. It’s easy to carry, operate, maintain, intelligent, and so on.



Wonderful Experience

Straight design, simple numeric keypad, fashion appearance, Easy to handle and operate PIN input

Exceptional Stability and Reliability

Supports Android, IOS operating system, Compatible with Bluetooth 2.1-4.2 Long standby time

Unprecedented Security

High-level security chip , multiple tamper and self - destruction mechanism PIN input device safety assessment test certification EMV, PBOC, PCI certification Fully guarantee the safety of the user

Near field Payment

- Supports readable contact IC cards

- Supports 13.56 MHz contanctless cards

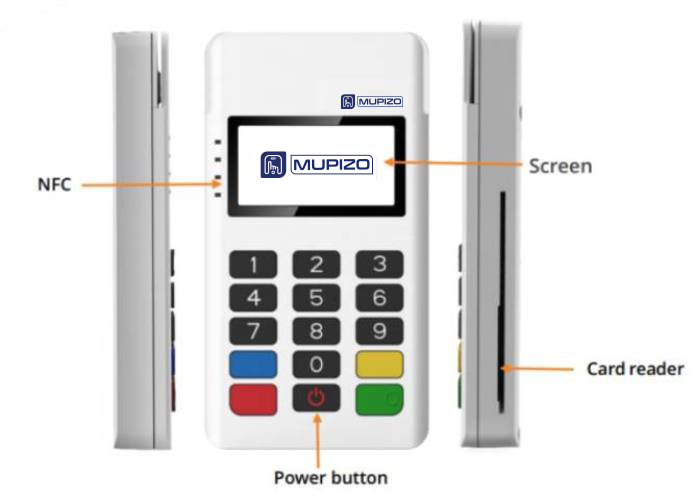

Structure Description

Structure Description



32-bit high performance security CPU


10 numeric keys, 4 function keys, 1power key

Magnetic card reader

Track 1/2/3, Bi-Directional, ISO7810, ISO7811, ISO7813

IC card reader

Supports contact IC card
Supports 1.8V, 3V, 5V card
Supports memory card, CPU card
Supports EMV, PBOC3.0, ISO7816

NFC reader (Optional)

Supports ISO / IEC 14443 Type A / B, Mifare card, qPBOC
Supports four LED light s display


Conforms to the requirements of Union Pay PIN input specification
Comply with ANSI X9.8 / ISO9564, ANSI X9.9 / ISO8731,ANSI X2.24 / ANSI X9.52 specification;
Supports DES, 3DES, RSA2048, SHA-256 and other algorithms

Power supply

DV 5V, 240 mAh
Micro-USB standard charging interface
Built-in rechargeable Li-battery


Supports energy-saving mode and automatic shutdown function
Supports magnetic card continuous trading 500 times
Supports IC card continuous trading 300 times


Bluetooth compatible with 2.1-4.2 specification
Supports for hibernation and low power transmission mode

Physical interface

1 micro-USB interface
1 IC card slot

Indicator light

1 charging status indicator
1 power indicator


Built-in buzzer, minimum sound pressure 82db / 10cm


Operating temperature: -10˚C ~ 50˚C
Stock temperature: -20˚C ~ 70˚C
Relative humidity: 10% ~ 95% ,non-condensing
