Compact Mobile POS System VM30

Android SMART POS Enjoy New Experience

VM30
VM30
VM30

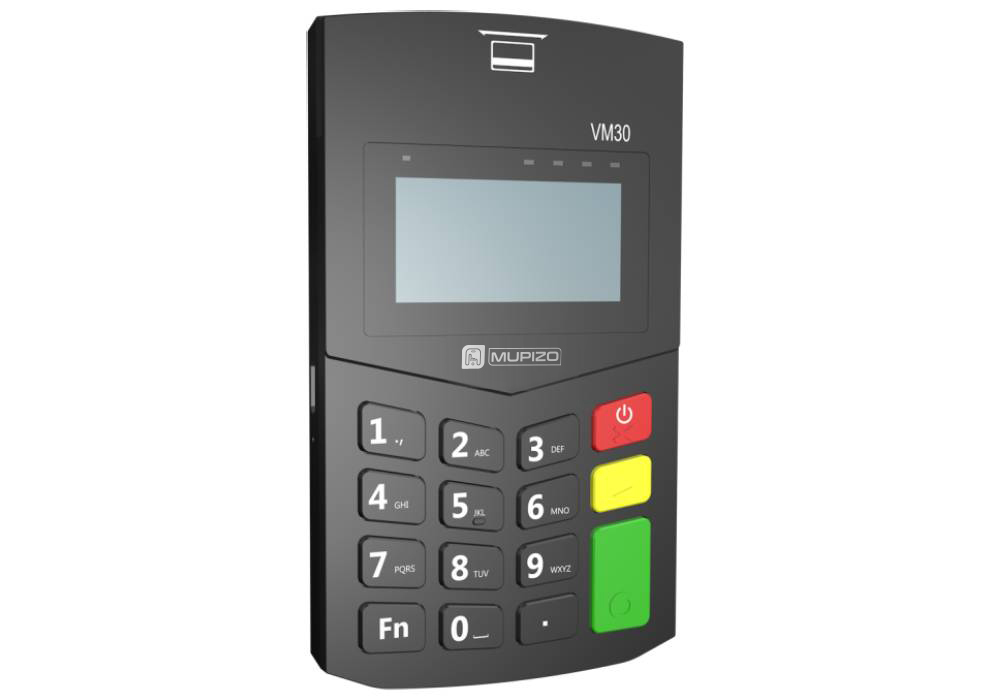

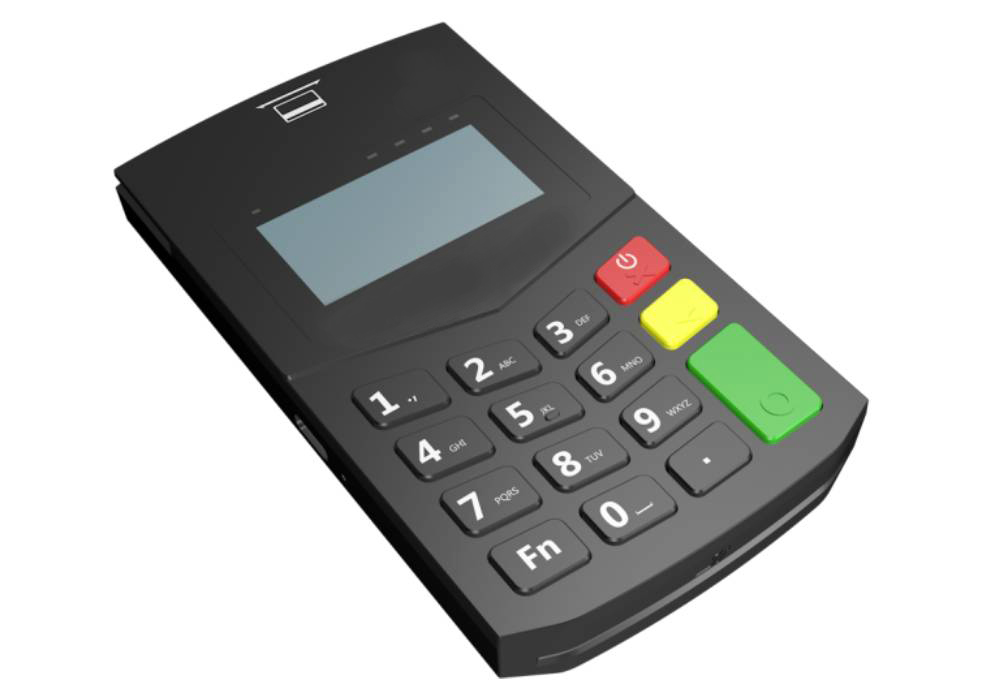

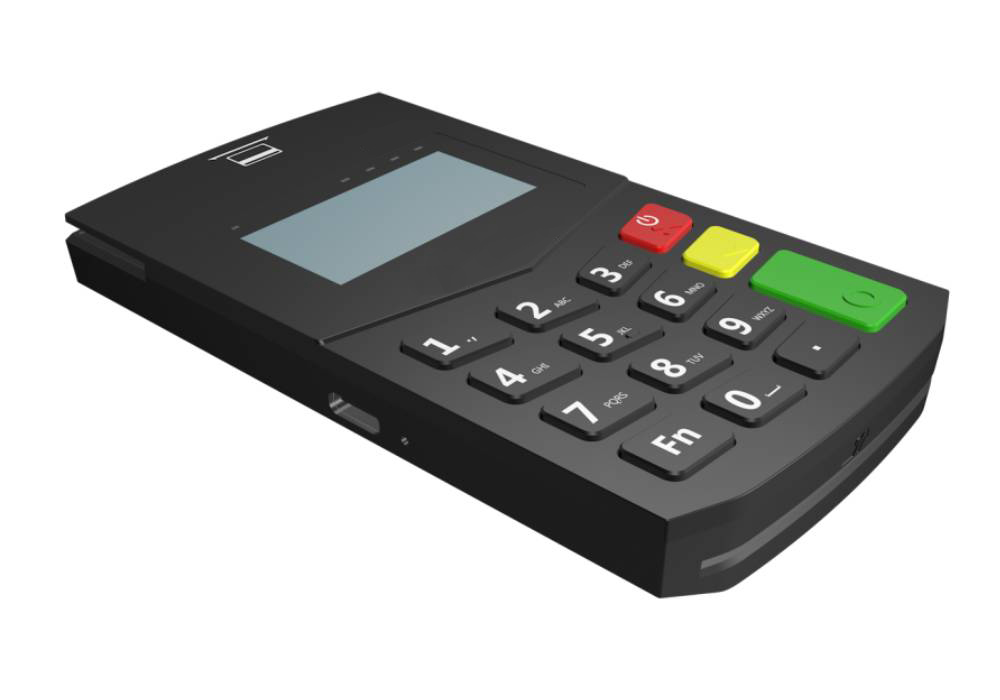

The VM30 mobile POS is a lightweight pocket-sized payment terminal which can be paired with any smart device via Bluetooth.Thus convert it into a mobile payment acceptance solution.

The VM30 mobile POS terminal is highly secured. It supports all payment methods including EMV Chip & PIN, Magnetic stripe card and swipe NFC/contactless, Apple Pay , Samsung Pay and so on.

Equipped with high performance processor, large capacity memory, 4 lines of The text shows that it meets the needs of mobile applications. Large capacity batteries, ultra-low power consumption, Long standby time to meet the needs of users

NFC
Magstripe
IC Card
Bluetooth
Inquiry Brochure

Features

Light weight and slim design

128*64 LCD，Backlight

Speed up work flow

Improve accuracy

ARM 32bit, Security processor;

Card Readers

Lithium-ion Battery

Indicator Lights

Smart Applications

Coupon
VIP
Report
Invoicing
Top Up
Finance
Store
Order

Specifications

Processor

ARM, 32bit, Security processor;

Storage

1MB RAM；8MB Flash

Battery

Lithium-ion Battery : 250mAh(Optional 520mAh);
Button Battery: Can be used for more than 5 years;

Display

128*64 LCD，Backlight;

Security

Cipher Key Infrastructure : MK/SK, Fixed, DUKPT;
Encryption Algorithm: DES、3DES、RSA;

Connection

1 Powered USB TypeC, USB Slave;

Led

1 Charged LED;
4 Contactless LEDs(Blue, Yellow, Green, Red)；

Bluetooth

Bluetooth 3.0 + BLE

Keypad

13 physical keys, Incude 10 numeric/letter keys and 3 function keys;

Contactless Card Reader

13.56MHz, support ISO14443 Type A&B, Support Mifare card;
Comply with EMV/ UnionPay/Paypass/Paywave certification specifications;

Magnetic Stripe Card Reader

Encrypted Magnetic Read Head; Support ISO 1/2/3 track card; In accordance with
ISO7811/ISO7812 standard;

IC Card Reader

In accordance with ISO7816/EMV/ UnionPay specifications;
Support 1.8V, 3V and 5V card;
Support SLE4428/ SLE4442 and other card;

Audio

1 Buzzer;

Size

116mm * 66.5mm * 14.5mm

Certification

EMV L1, EMV L2, EMV CL1, Paypass, Paywave, PCI
