Q181 Sound Box for UPI Payment

Make Payments Sound

Q181
Q181
Q181
Q181

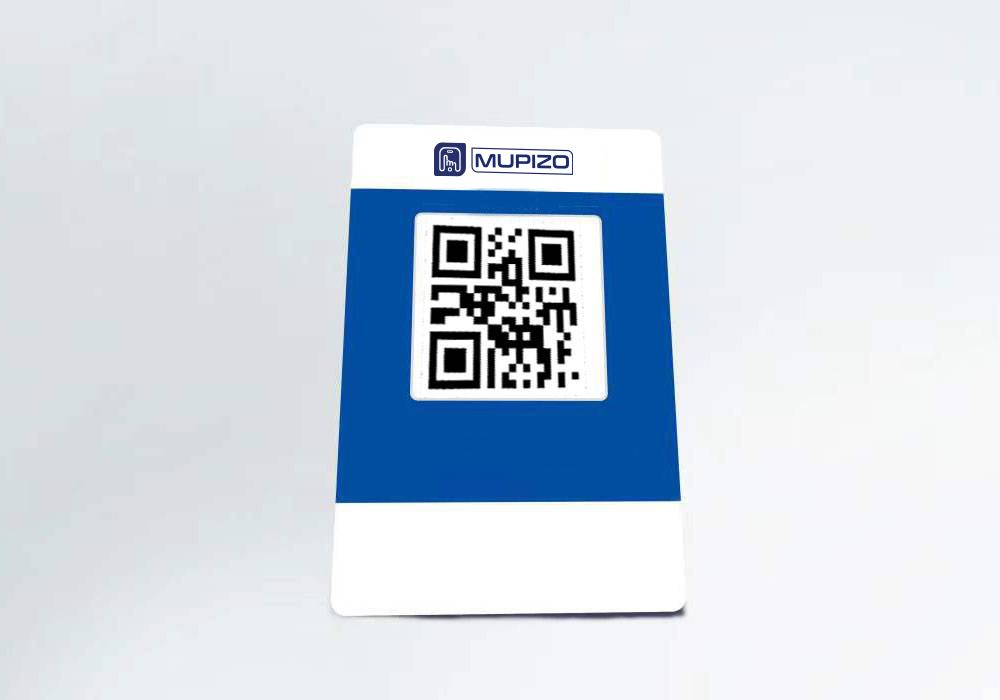

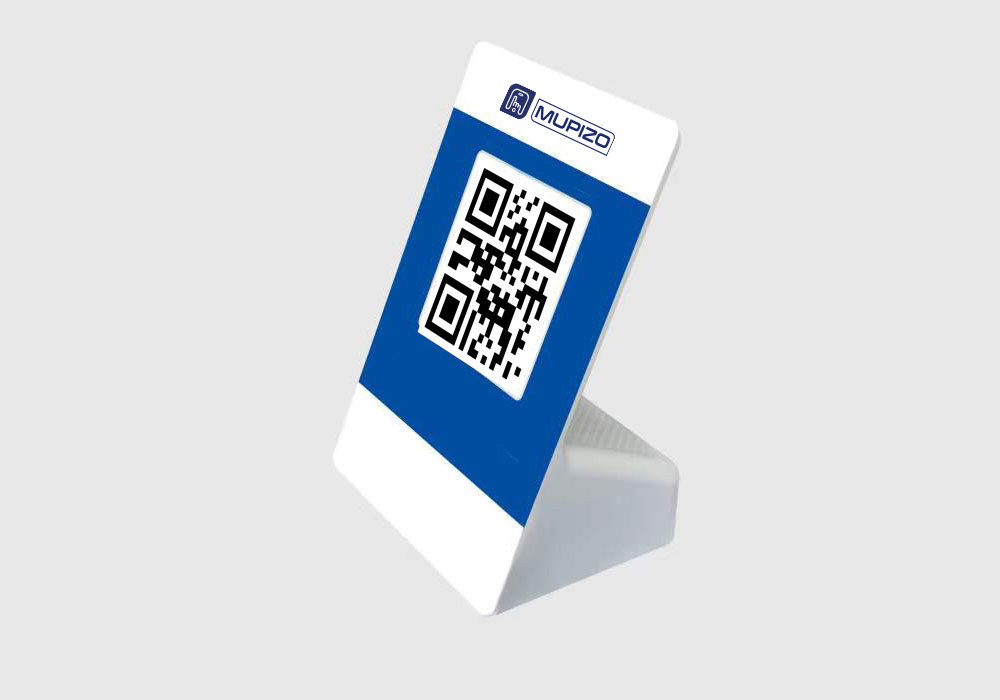

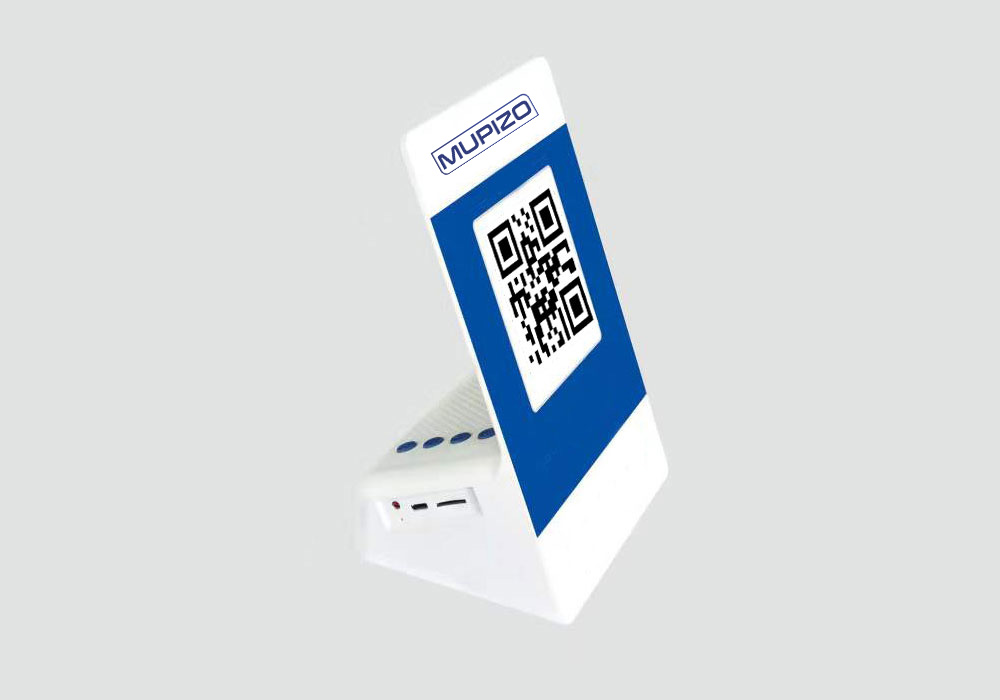

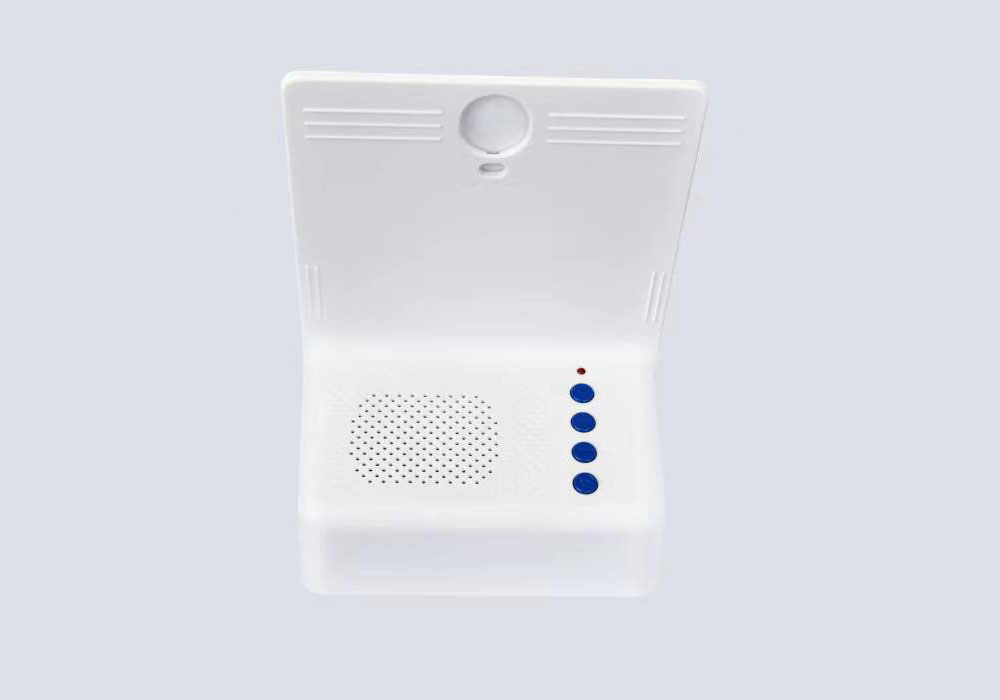

Q181 is a payment transaction broadcasting soundbox, a quicker and more compact design for loud and clear notifications the second after payments were received. With a detachable code panel, 2G, 4G and wifi wireless communications, it is flexible to be placed at different spots in the store.

2G/4G
Wifi
QR Code
Inquiry Brochure

Features

QR Code Payments

Volume Adjustable

Real-Time Broadcast

Smart Applications

Restaurant
Scenic Spot Entrance
Convenience Store
Supermarket
Toll Station

Specifications

Processor 2g

High Performance CPU, 208MHz

Processor 4g

Cortex-A5 Dual-Core , 500MHz

Memory 2g

RAM: 4MB, Flash: 4MB

Memory 4g

RAM: 16MB, Flash: 8MB

Communication 2g

2G Optional : WI-FI 2.4GHz

Communication 4g

4G Optional : WI-FI 2.4GHz

Card Slots 2g

1 * SIM

Card Slots 4g

1 * SIM

Display

7-Segment Display Optional

Keys

1 * Power Key, 1 * Function Key, 2 * Volume Up/Down Keys, 1 * Reset Pinhole

Peripheral Ports

1 * Powered Micro USB

Indicator Lights

1 * Charging Indicator, 1 * Status Indicator

Speaker

4Ω3W, Adjustable High Volume

Battery

1500mAh Li-ion Battery,
Optional: 2000mAh

Power Supply

DC 5V/ 1A

Dimensions

182×122×82mm L×W×H

Weight

285g

Accessory

USB Cable, for Charging

Certifications

CE, BIS, WPC

Environmental

Operating Temperature:-10 50
Storage Temperature: -20 70
Relative Humidity: 5℅ 95℅, Non-condensing
