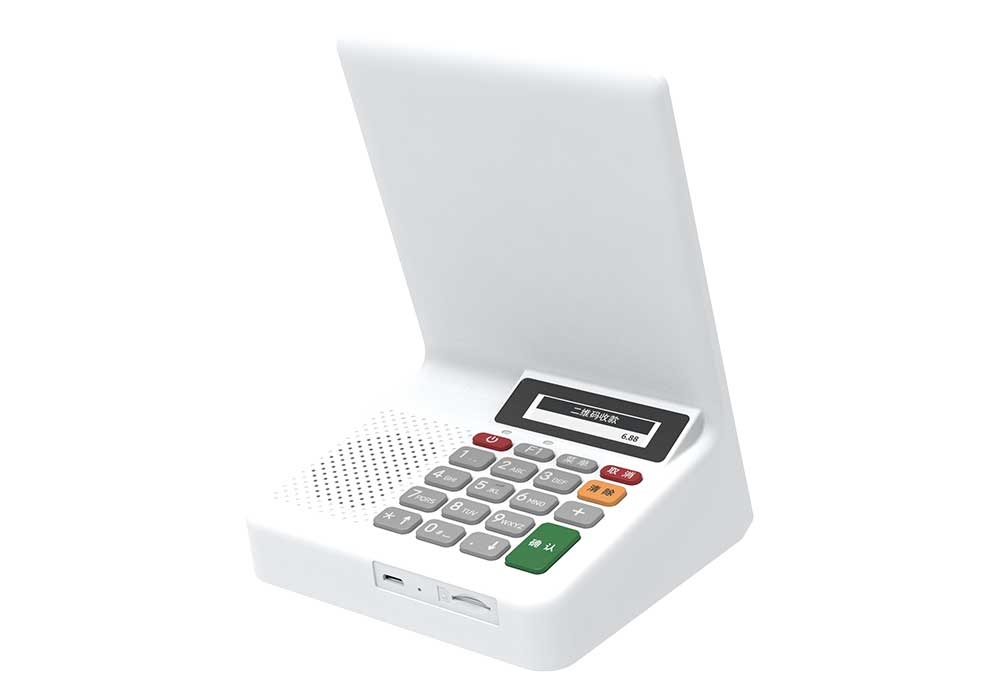

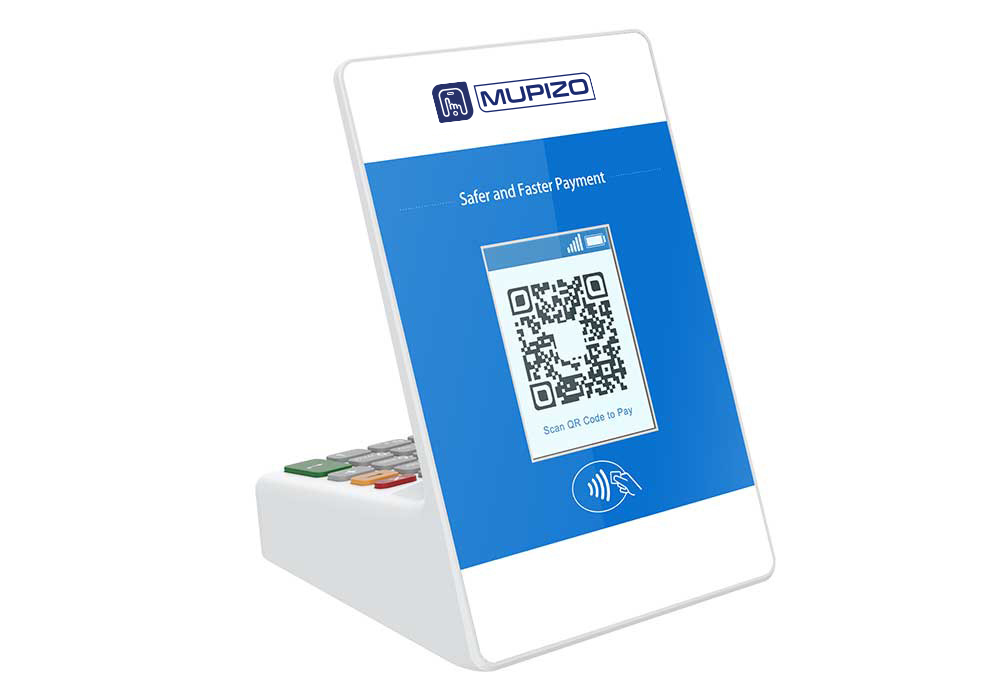

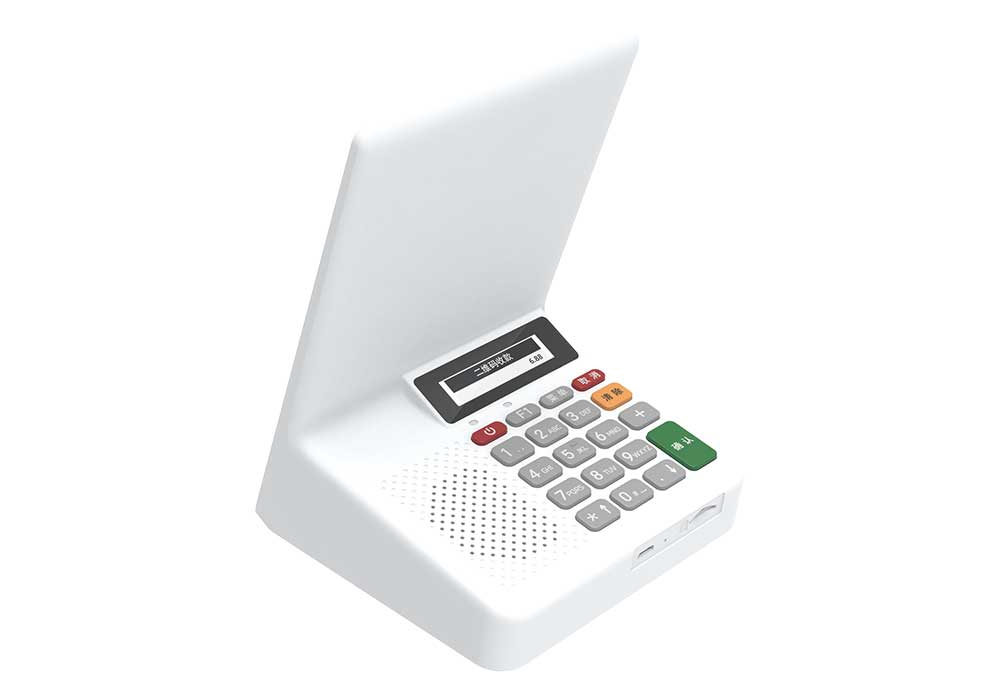

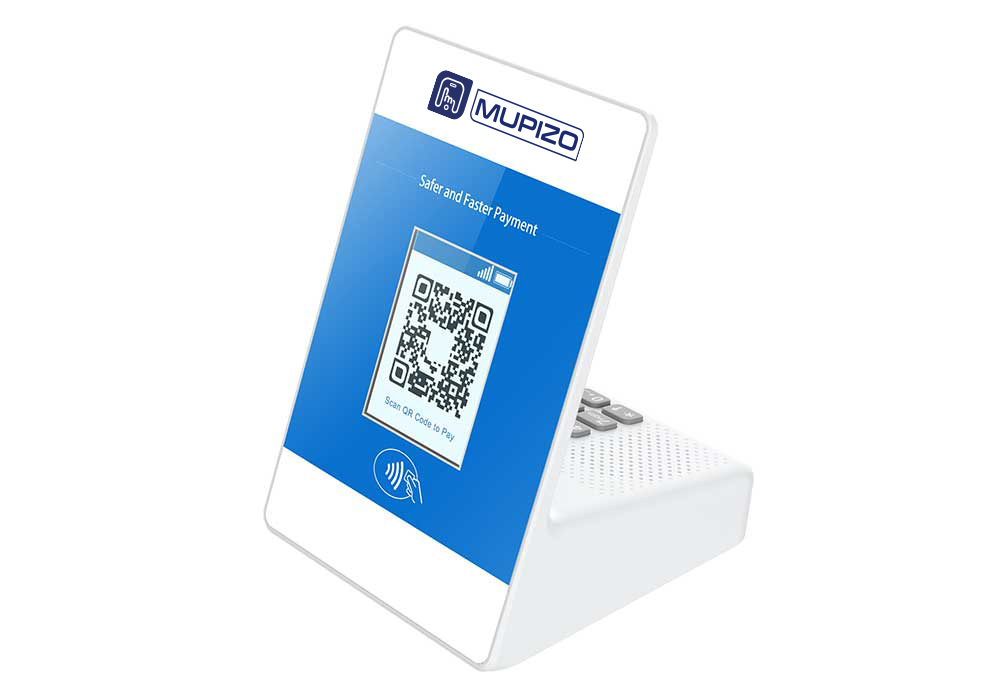

Q161 UPI Payment Soundbox

Innovative Contactless Payment Device with Sound Box

Q161
Q161
Q161
Q161

Q161 Payment Soundbox's sleek design and clear audio, customers can easily hear payment confirmations and errors. The quick responsive soundbox is flexible, and making it easy to be installed at any spot in the store and its design enhance your brand identity. Powered by fast dual core processor and supporting 2G, 3G, 4G and WiFi wireless communications offer customers fast and interactive payment experience.

2G/4G
Wifi
QR Code
Inquiry Brochure

Features

QR Code Payments

Volume Adjustable

Real-Time Broadcast

2.4 inch Color screen

Indicator Lights

Contactless Payment NFC

Smart Applications

Restaurant
Scenic Spot Entrance
Convenience Store
Supermarket
Toll Station

Specifications

Processor

32 bit Dual-Core A5, 500MHz

Memory

RAM: 16MB, FLASH: 8MB; Optional External Flash

Communication

4G Cat1 ,Optional : WIFI 2.4GHz

Card Slots

1 SIM

Main Display

Dual line LED Screen : 7 digit screen (optional),C12

Merchant Display

2.4 inch colour screen, 320*240 , support Dynamic QR display 2.8 inch colour screen, 320*240 (optional)

Contactless Payment NFC

13.56 MHz, supports IS014443 Type A & B standard, conform to EMV 3.0, QPBOC Standard

Location

GPS/Glonass (Optional)

Secure Chip

96MHz, 68 KB RAM, attack proof

Algorithm

SM2, SM3, SM4, SHA256, DES/3DES, RSA, etc

Keys

19 keys in total (including 12 numeric/alphabet keys, 6 function keys, 1 on/off key)

Peripheral Ports

1 Micro USB

Indicator Lights

4 NFC indicate light (Optional) 1 Power light, 1 Signal Light

Speaker

4Ω3W

Battery

2000mAh

Power Supply

: DC 5V/ 1A

Dimensions

111.5x117x155mm LxWxH

Weight

328 g
