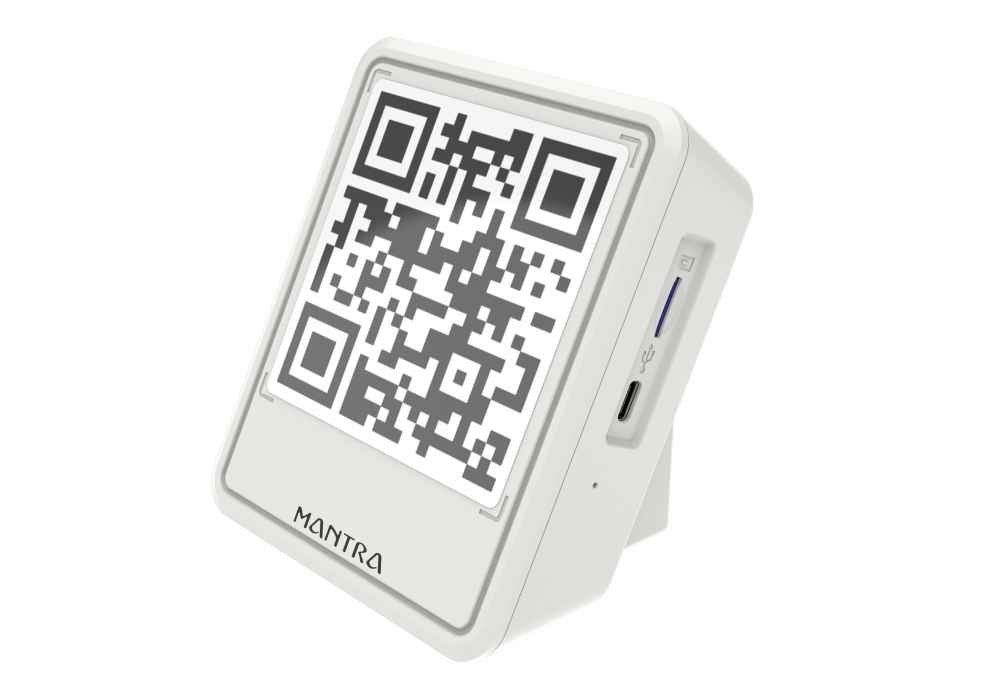

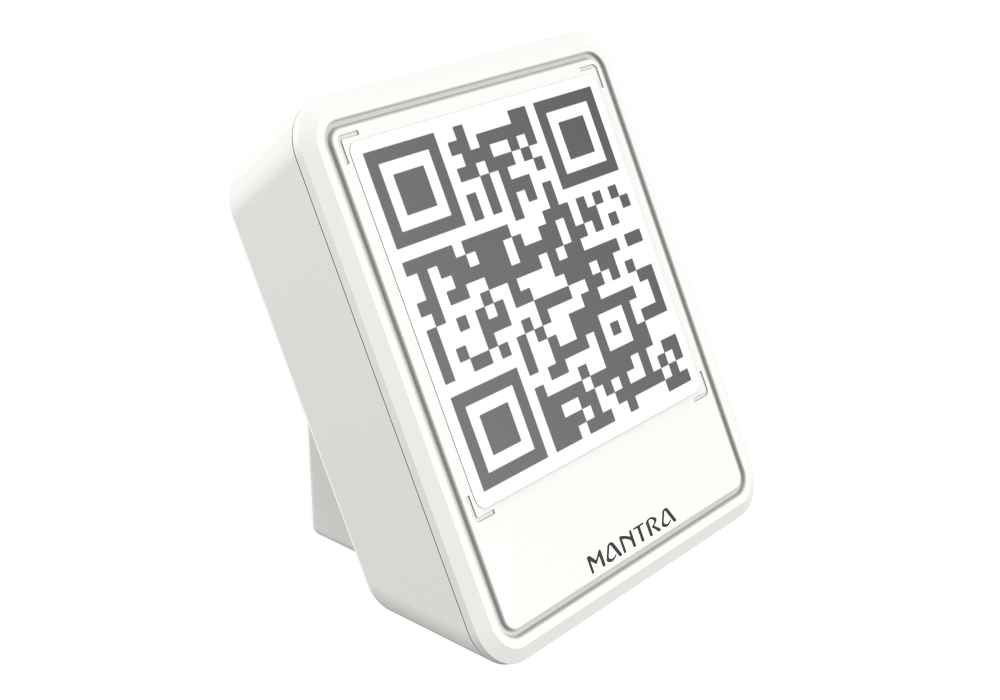

MS20 Sound Box for UPI Payment

Payment sounds that is Made in India

MS20
MS20
MS20
MS20
MS20
MS20
MS20
MS20
MS20
MS20

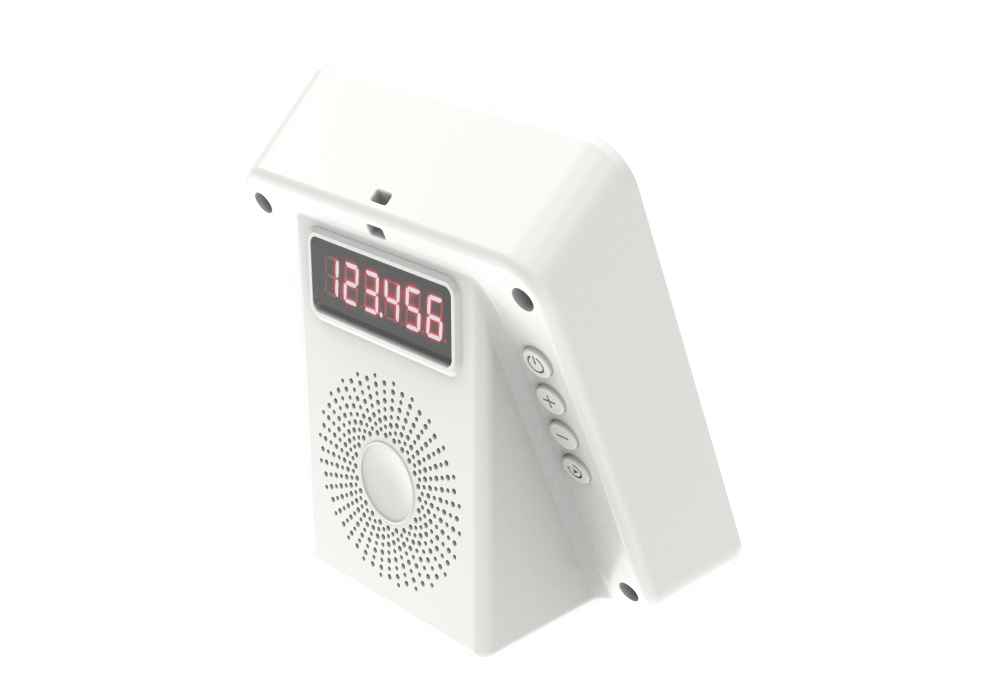

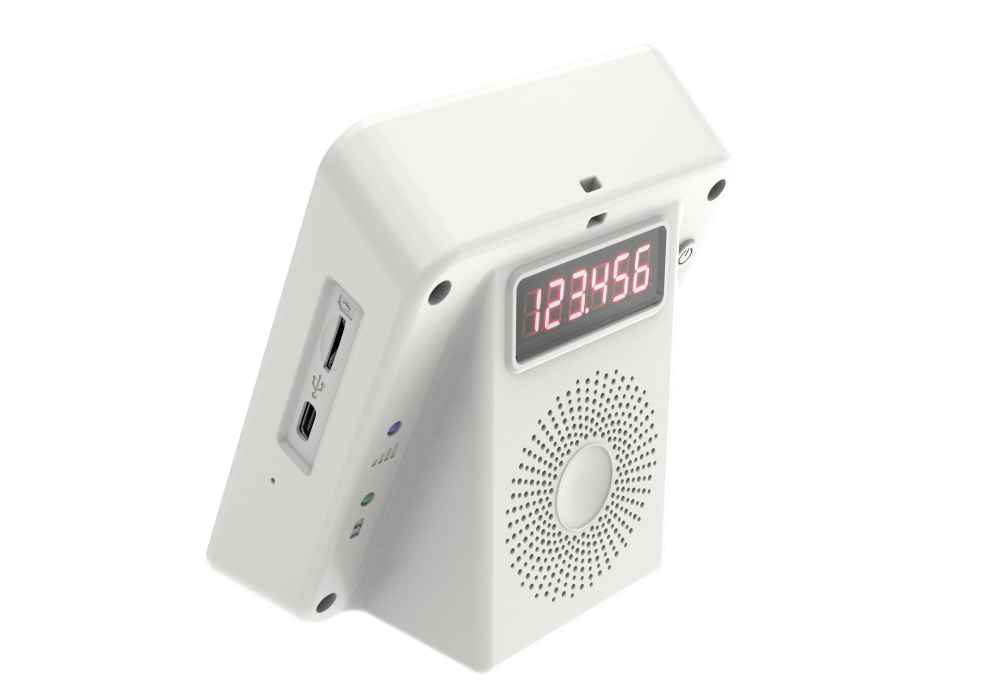

MS20 the innovation in  Payment Sound Box is revolutionary.With the Payment Sound Box, customers are immediately notified when their payment is accepted or declined, which can help reduce the time spent waiting in lines and increase overall customer satisfaction by bringing transparency.

By leveraging the power of QR code-based payment technology, the payment sound box has the potential to revolutionize the way businesses and customers interact during the payment process.

Powered by a fast dual-core processor and supporting 2G, 4G, and WiFi wireless communications

2G/4G
Wifi

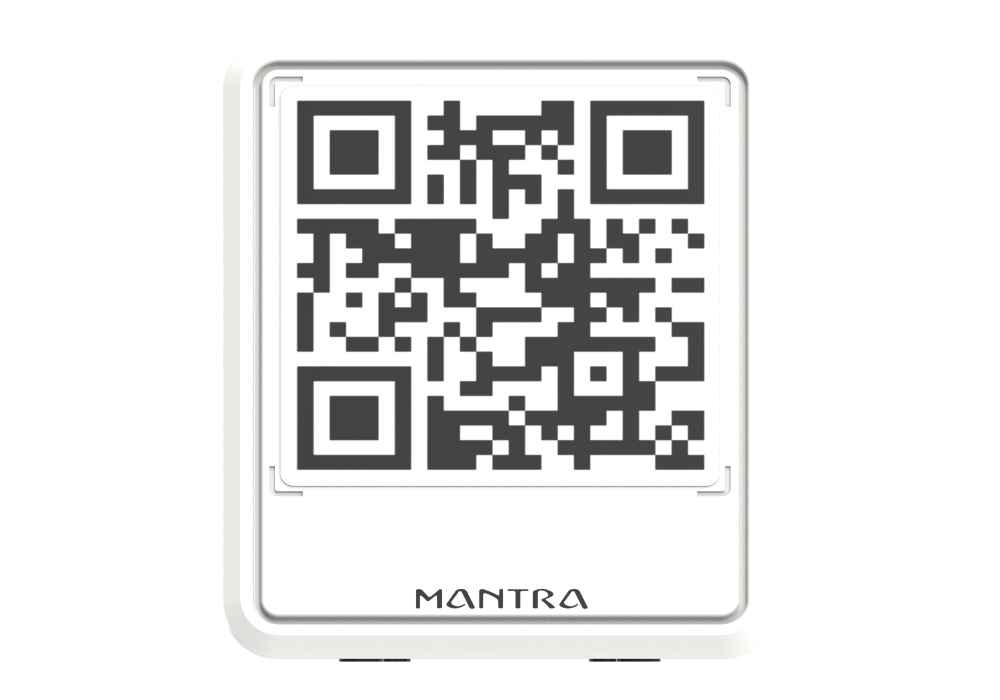

QR Code
LED Display
Inquiry Brochure

Features

Powered by a fast dual-core processor and supporting 2G, 4G, and WiFi wireless communications .

Over The Air (OTA) firmware updates for DFOTA & Music Files.

Instant Sound Notification for payment transactions, Battery, Device, and Network.

Loud 85db sound output for clear communication.

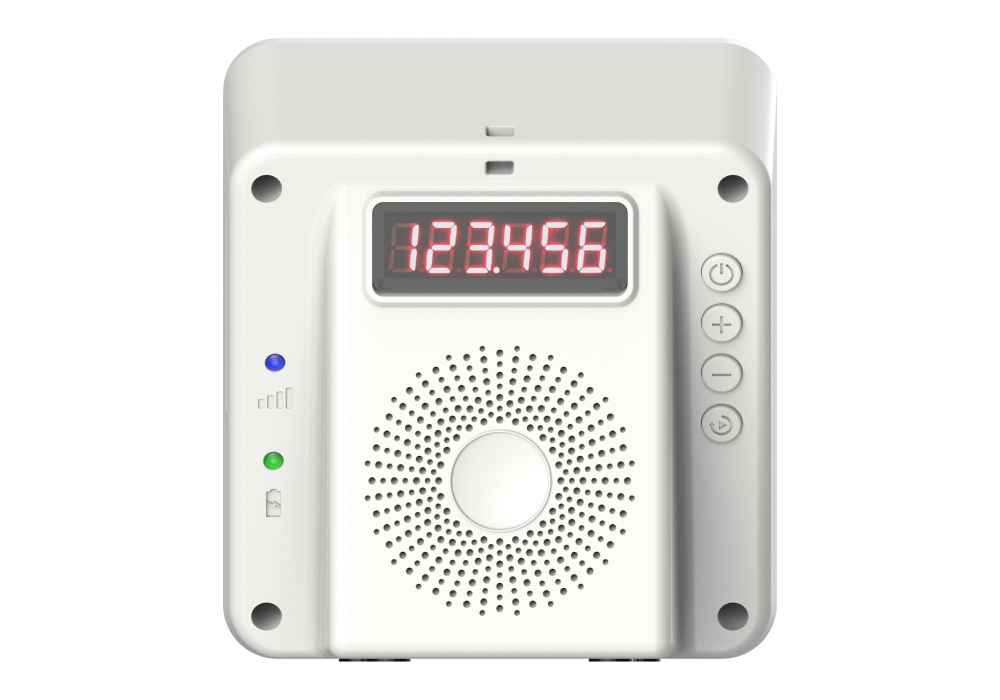

7-Segment display feature to show the received amount.

LED indication for Network & Battery.

Time Sync from NTP.

Smart Applications

Restaurant
Scenic Spot Entrance
Convenience Store
Toll Station
Parking Lot
Supermarket

Specifications

CPU

ARM® Dual-core Cortex-A5, 500MHz

SIM Card Slot

1x Micro Sim Card

Power Supply

DC 5V / 1A

Battery Capacity

2000mAh Li-ion Rechargeable Battery

Speak

4 Ohm 3W (Adjustable Volume)

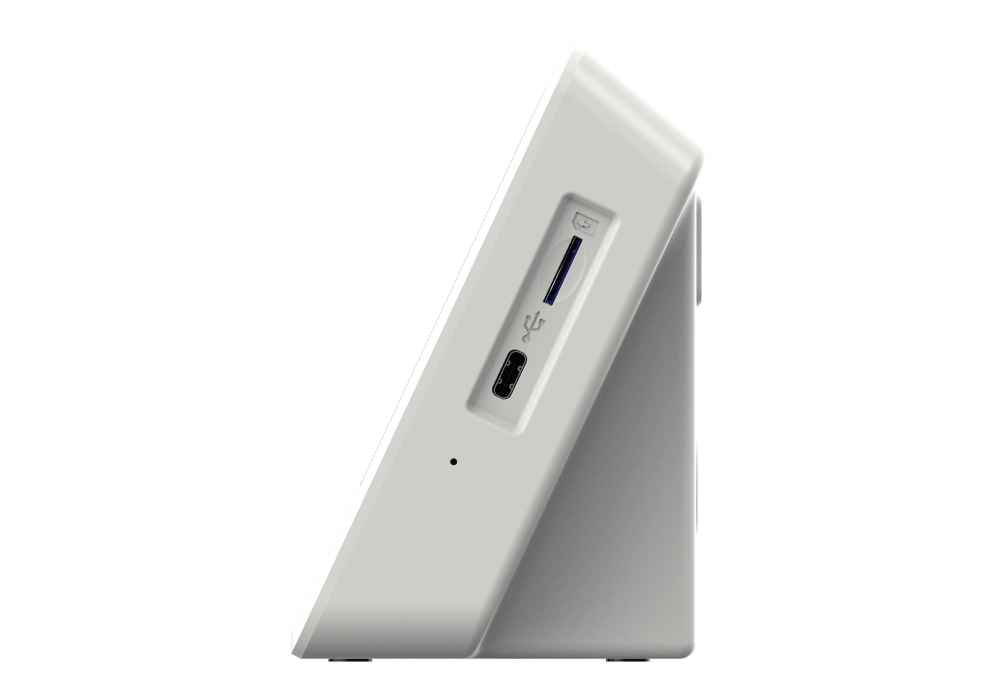

Peripheral Ports

1x Powered USB TYPE-C

Memory

RAM: 16MB & FLASH: 24MB

Display

7 Segment LED Display (6 - Digit)

Dimensions

Device Dimensions (L x W x H) : 112 x 100 x 73 mm

LED Indication

1x Battery status,
1x Network Connectivity

OTA

DFOTA and Music file Update Over The Air

Weight

Device Weight Approx : 0.28 Kg

Communication

2G ( EGSM900/DCS1800), 4G (LTE-FDD:B1/B3/B5/B8 & LTE-TDD:B34/B38/B39/B40/B41), Wi-Fi 2.4GHz (Optional)

Button

1x Power key, 1x Reset key, 2x Volume Up &, Down key,
1x Function Key

Environmental
Operating Temperature

0°C to +50°C

Storage Temperature

-10°C to +70°C

Humidity (Operating / Storage)

5% - 95% RH, Non-condensing

Compliant to Following Standard
Electrical Safety

BIS

EMI / EMC Compliance

CE, WPC

Health and Safety

RoHS

ESD protection Contact Discharge

+/- 8kV

Air Discharge

+/- 15kV Environmental
