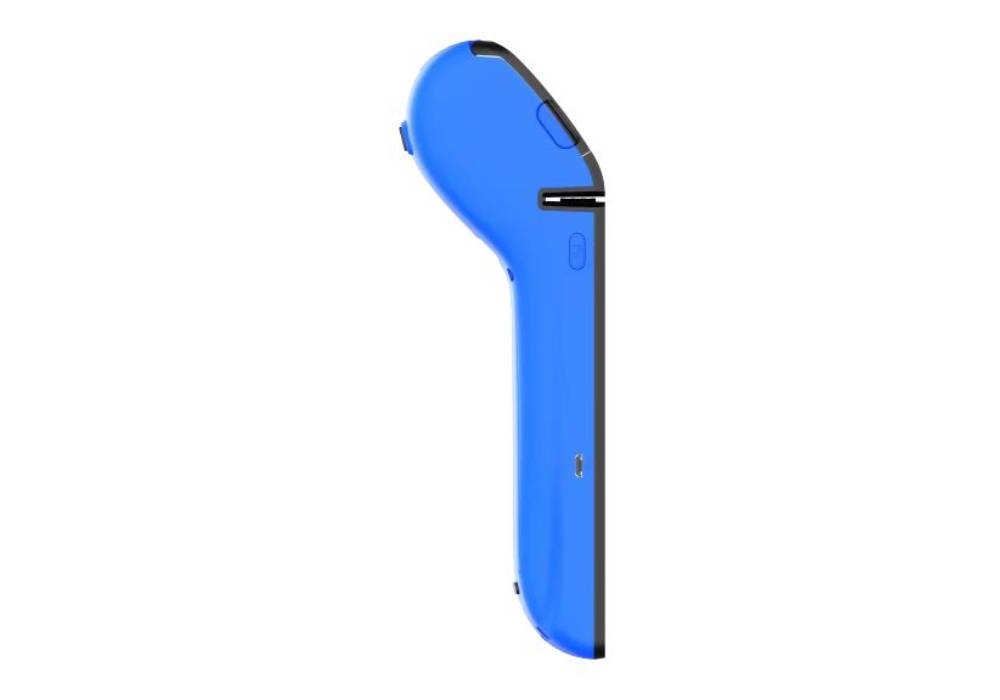

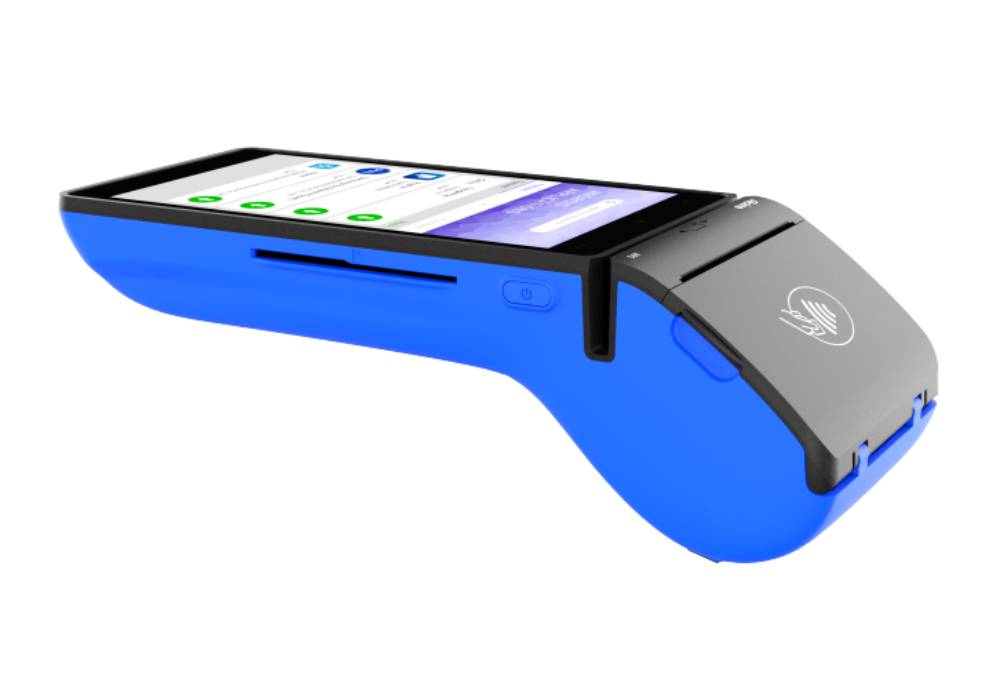

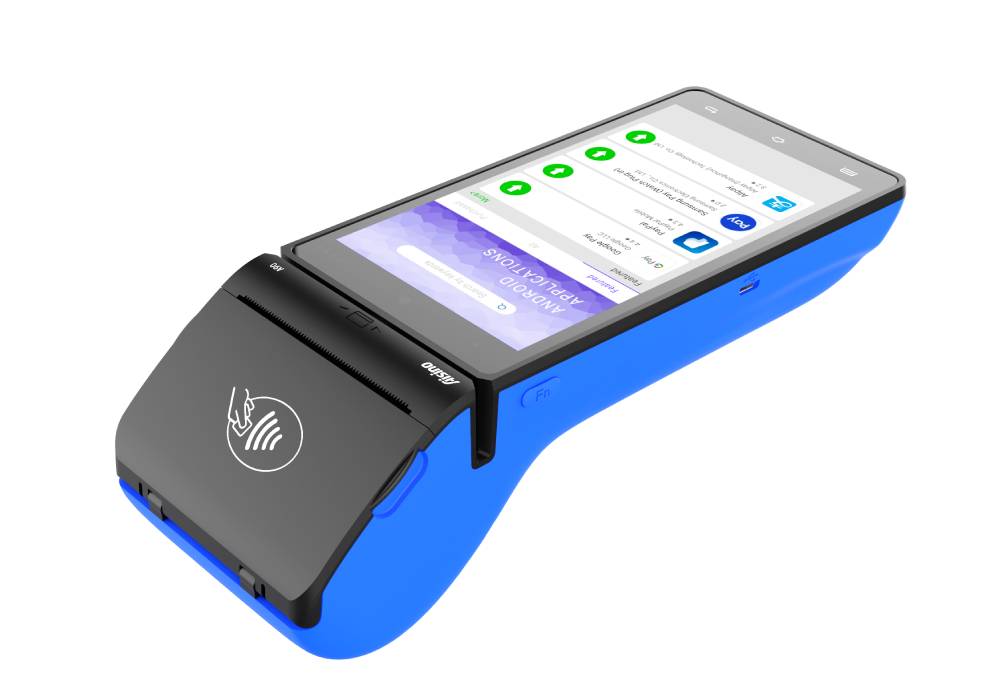

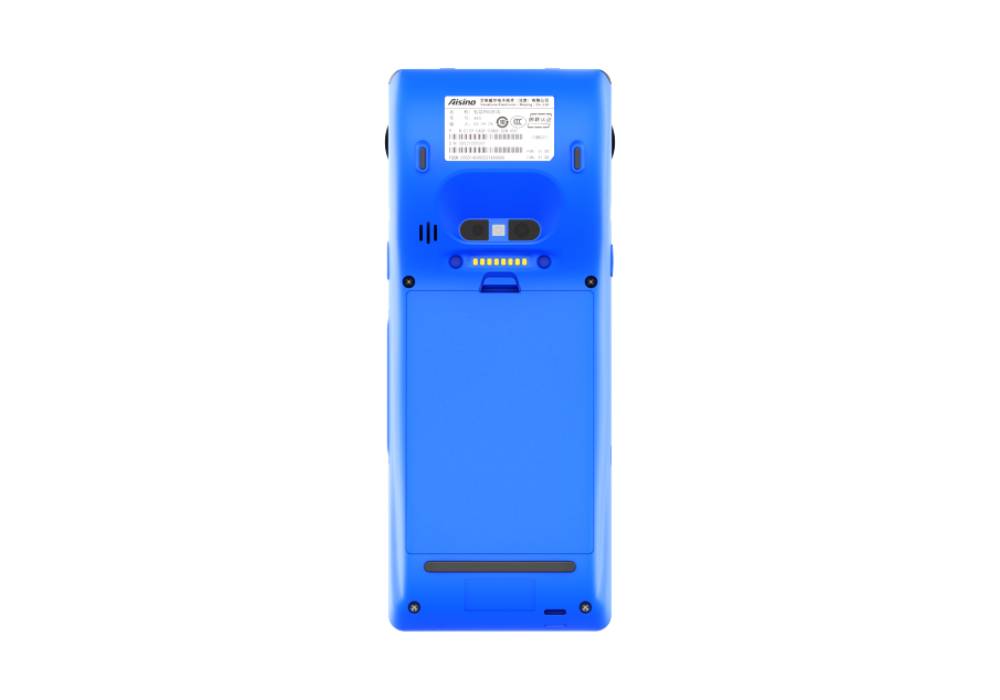

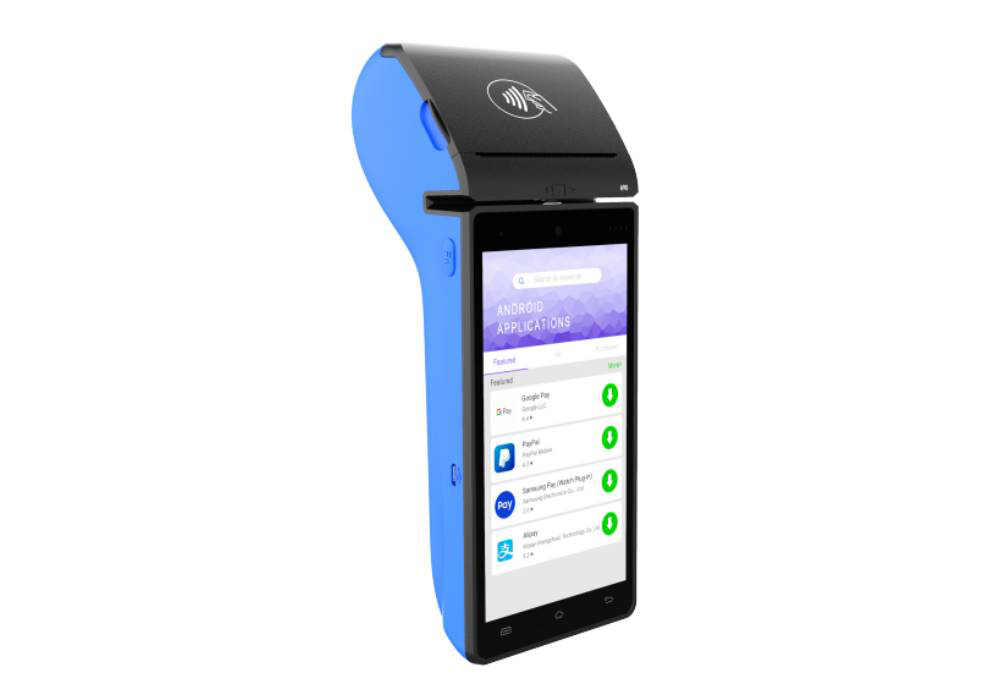

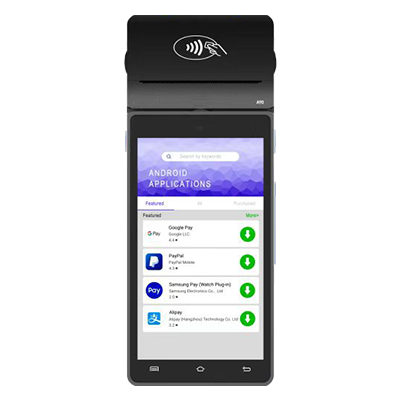

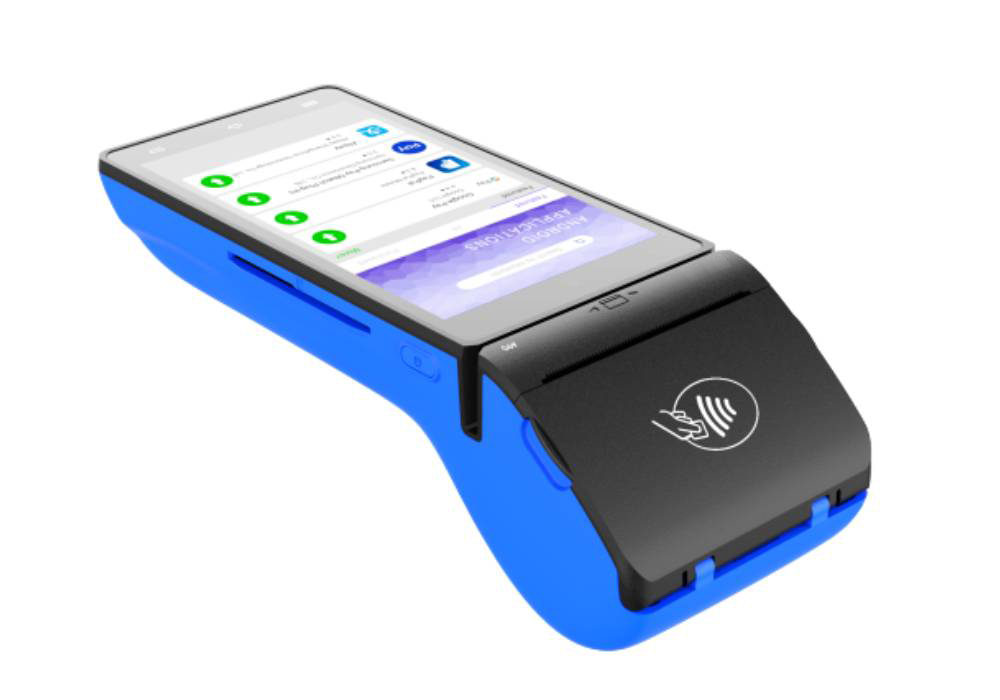

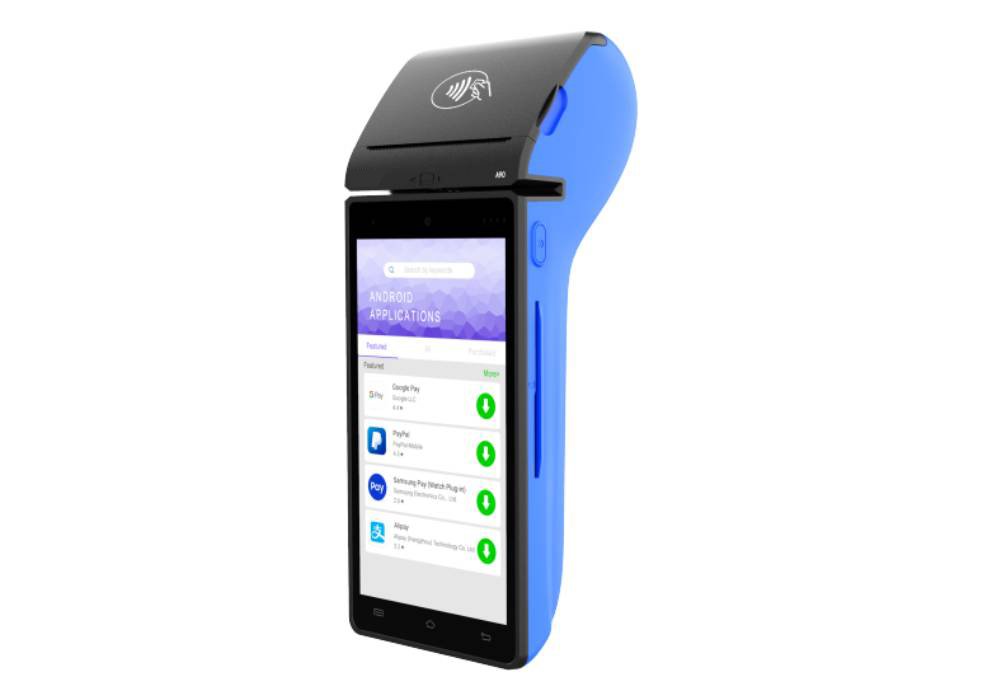

Card Swiping Machine A90

Android POS Enjoy New Experience

Smart handheld POS terminal, this is a powerful functional mobile payment terminal with a high-definition multimedia color touch screen and has a fingerprint scanner(Optional). It supports various communication technologies such as 4G, WIFI, and Bluetooth. The operating system is Android 7.0 and adopts the security chip required by PCI. It recognizes all financial payment and consumption functions such as magnetic stripe card, contactless card, two-dimensional code drawing, and payment, etc.A90 POS comes in a sleek and attractive design, combines the full features of an Android tablet with a powerful payment terminal, and compatible with all leading intelligent technology.


Android 7.0
Contactless
Ic Card
Magstripe
QR Code
Barcode
Wifi
Bluetooth

Features

Light weight and slim design

5.5" IPS Color Screen, 1280*720

Speed up work flow

Improve accuracy

32bit, Quad-Core

Card Readers

5200mAh

Camera

Smart Applications

Coupon
VIP
Report
Invoicing
Top Up
Finance
Store
Order

Specifications

Os

Android 7.1
Secure Operating System

Processor

32-bit Quad Core
1.1 Ghz application Processor

Memory

RAM : 1GB(optional 2GB)
ROM : 9GB(optional 16GB)
External flash 32GB at Maximum

Display

5.5 "IPS Screen, 1280*720
capacative touchscreen

Communication

4G 3G 2G

Bluetooth

BT 4.1, BLE

WIFI

B02, 11 bigin
2.4GHz, Optional %GHz

Card Readers

Magnetic Card reader
IC card reader
NFC reader

Keys

1 Power Key
1 Printer Key
3 Touch Keys

Printer

High Speed Thrmal Printer
Paper Width 58mm
Diameter: 40 mm

Camera

2MP Front Camara,
5MP Rear Camera, Auto Focus Fleshllight
1D/2D Barcode Scan

Audio

Speaker
Buzzer
Microphone

Card Slots

2 SIM
2 PSAM
1 SD Card

Adapter

input AC 100-240v 50/60Hz 0.5A
Output: 5V/2A

Battery

Li-ion Battery
3.6v/5200=AH

Indicator Lights

4 LED indicators
1 Charging Indicator

Dimensions

205*82*65mm
L=W*H

Weight

440g

Peripheral Ports

Separate DC Jack for Power Input

Power Adapter

1 USB Type-c
1 Pogo Pin

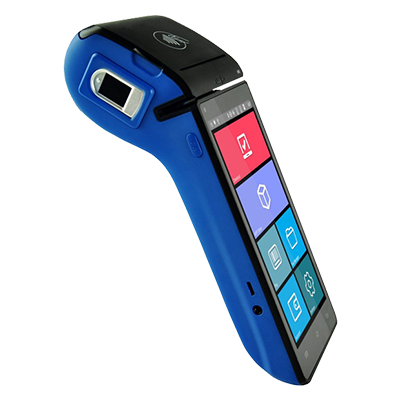

Fingerprint(optional)

Resolution 208*288

GNSS

GPS/GLONASS

Environmental

Operating

Certificates

PCI PTS 5 EMV L1
EMV CL L1, Mastercard Paypass
Visa Paywave, JCB j/Speady
Amax Expresspay
Union Pay QuickPass
Mastercard TOM, RuPay, PURE
ROHS, Anatel, BIS

Optional Configurations

Docking Stations
3 Optional Docking Stations
Support charging Reflection Scanning
serial Ports, Ethernet Ports, External Ports
